UK3OverviewSpecsFAQBuy now

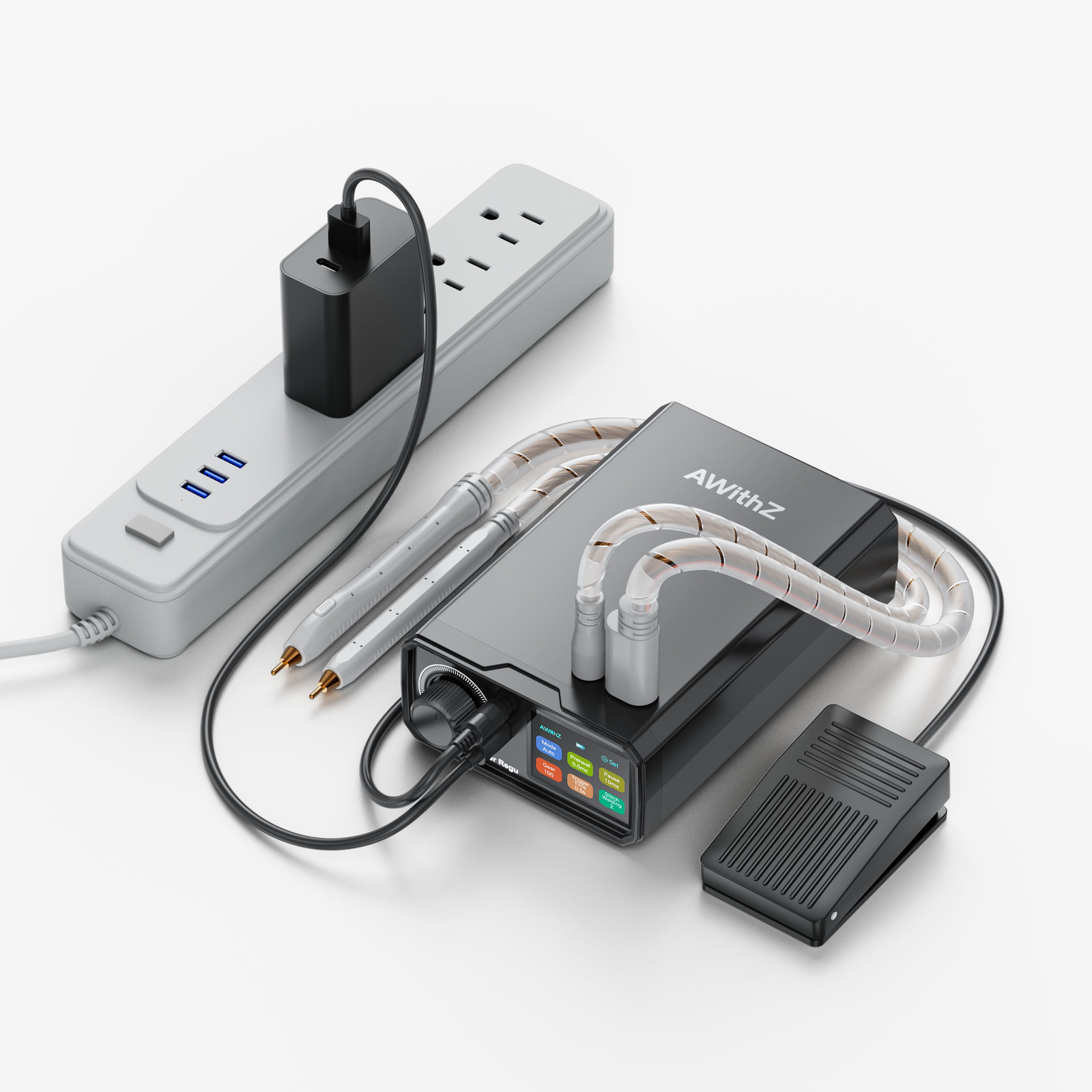

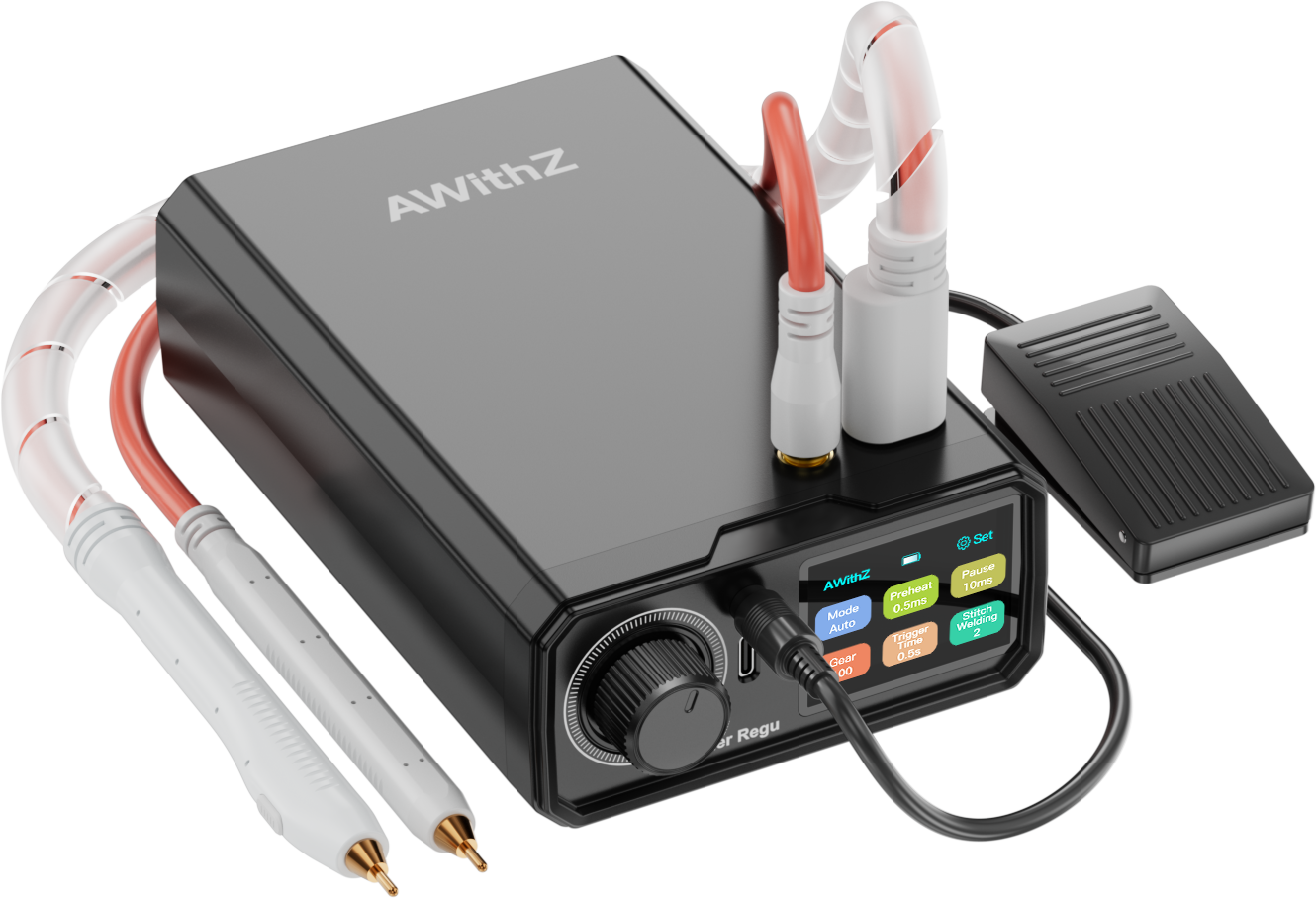

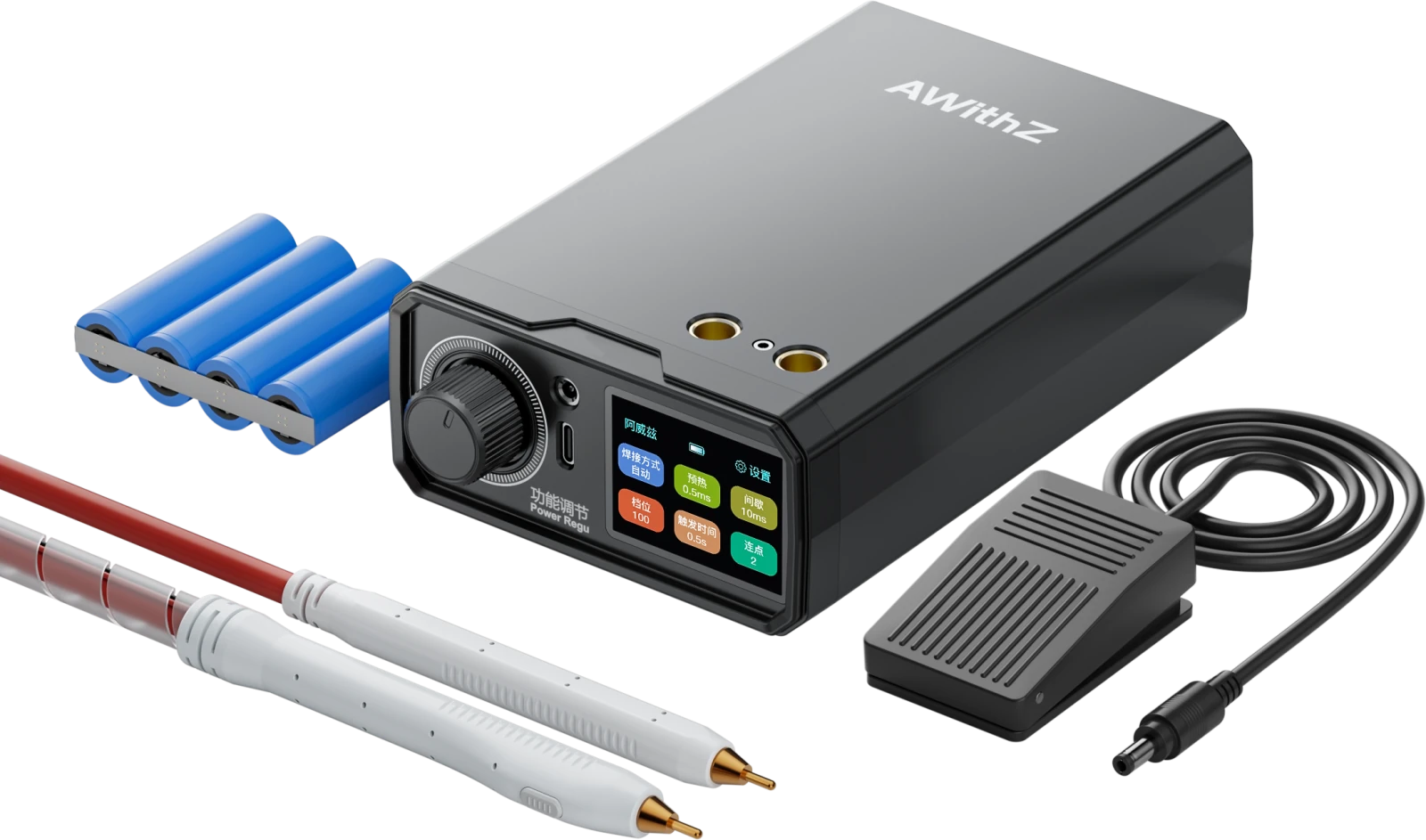

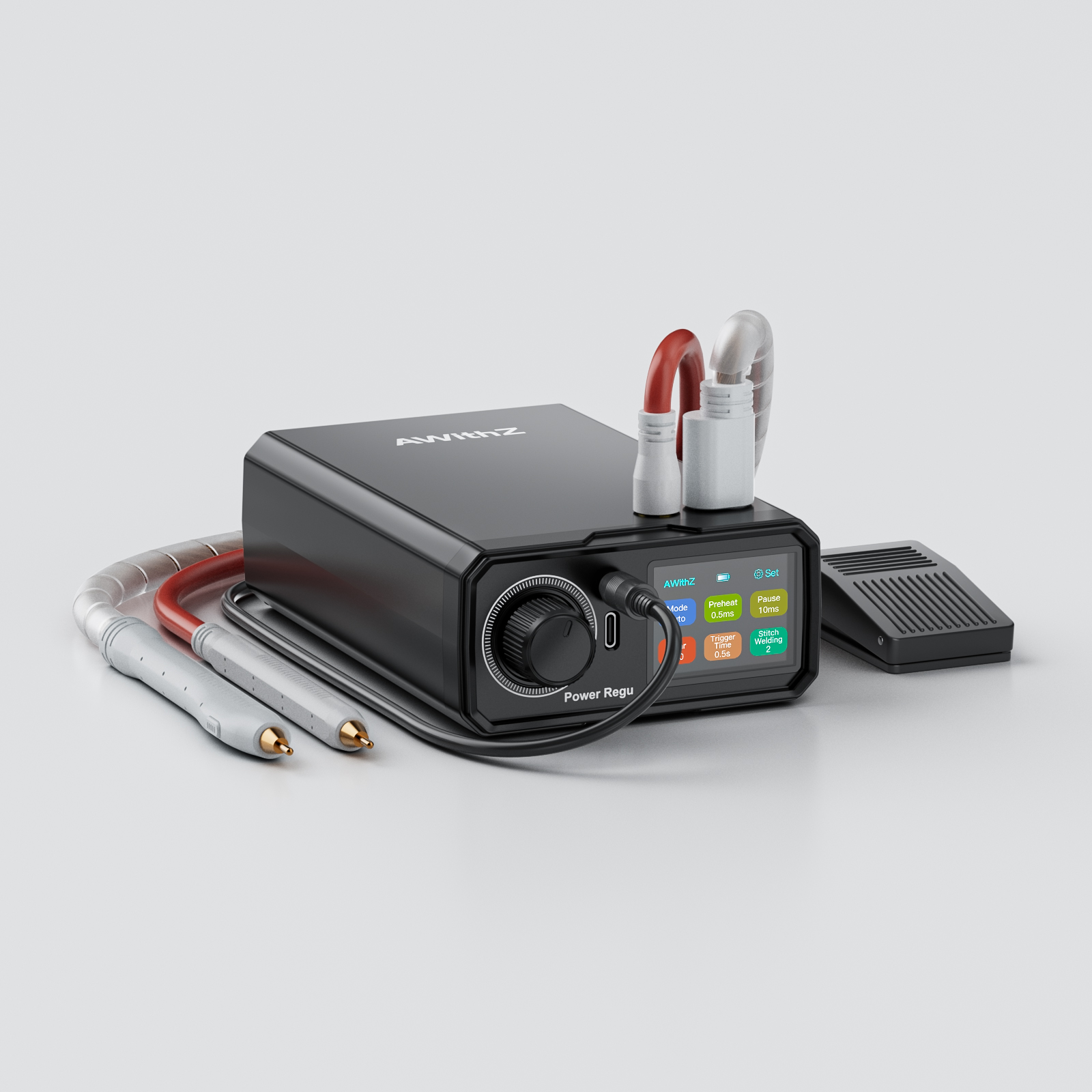

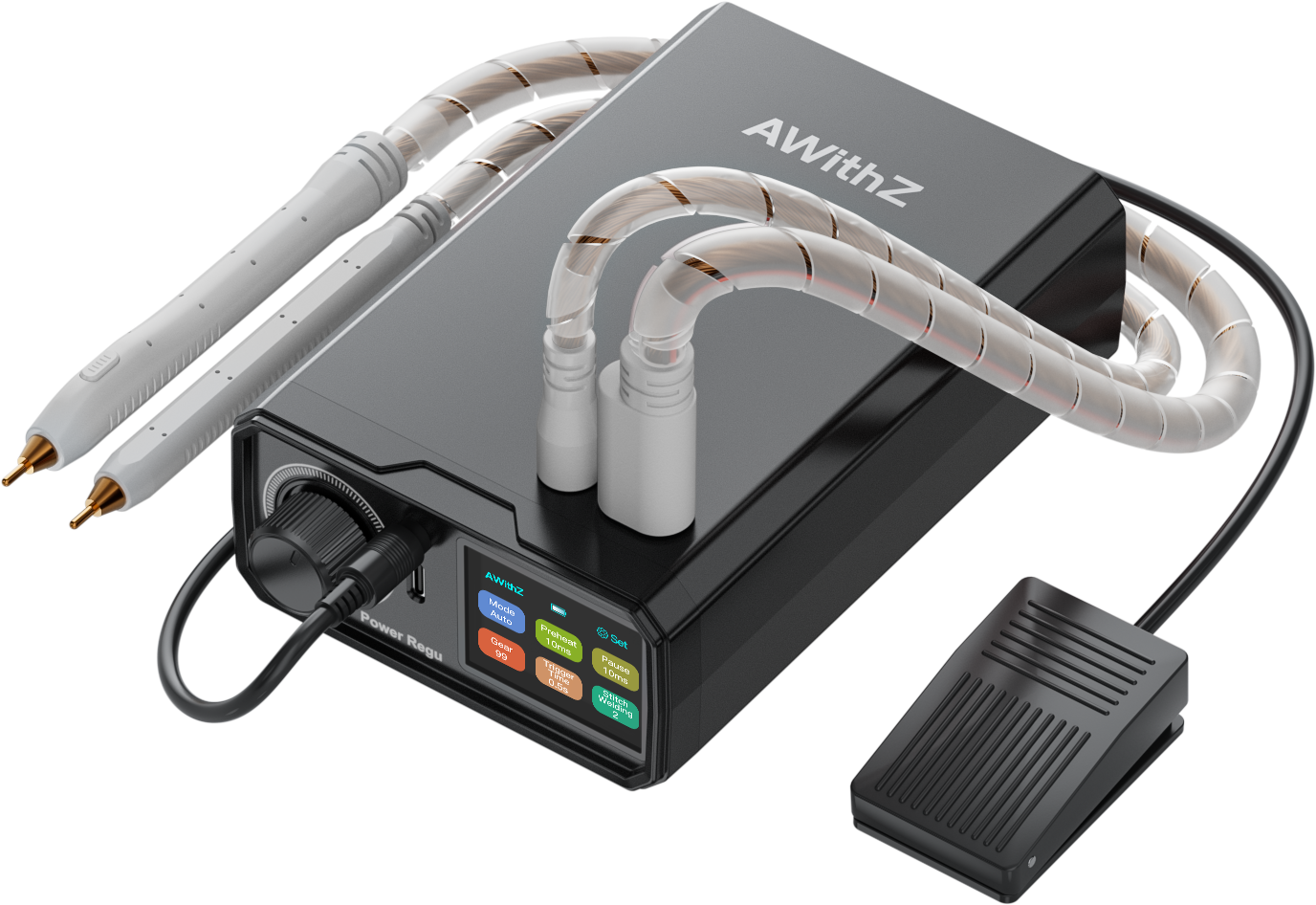

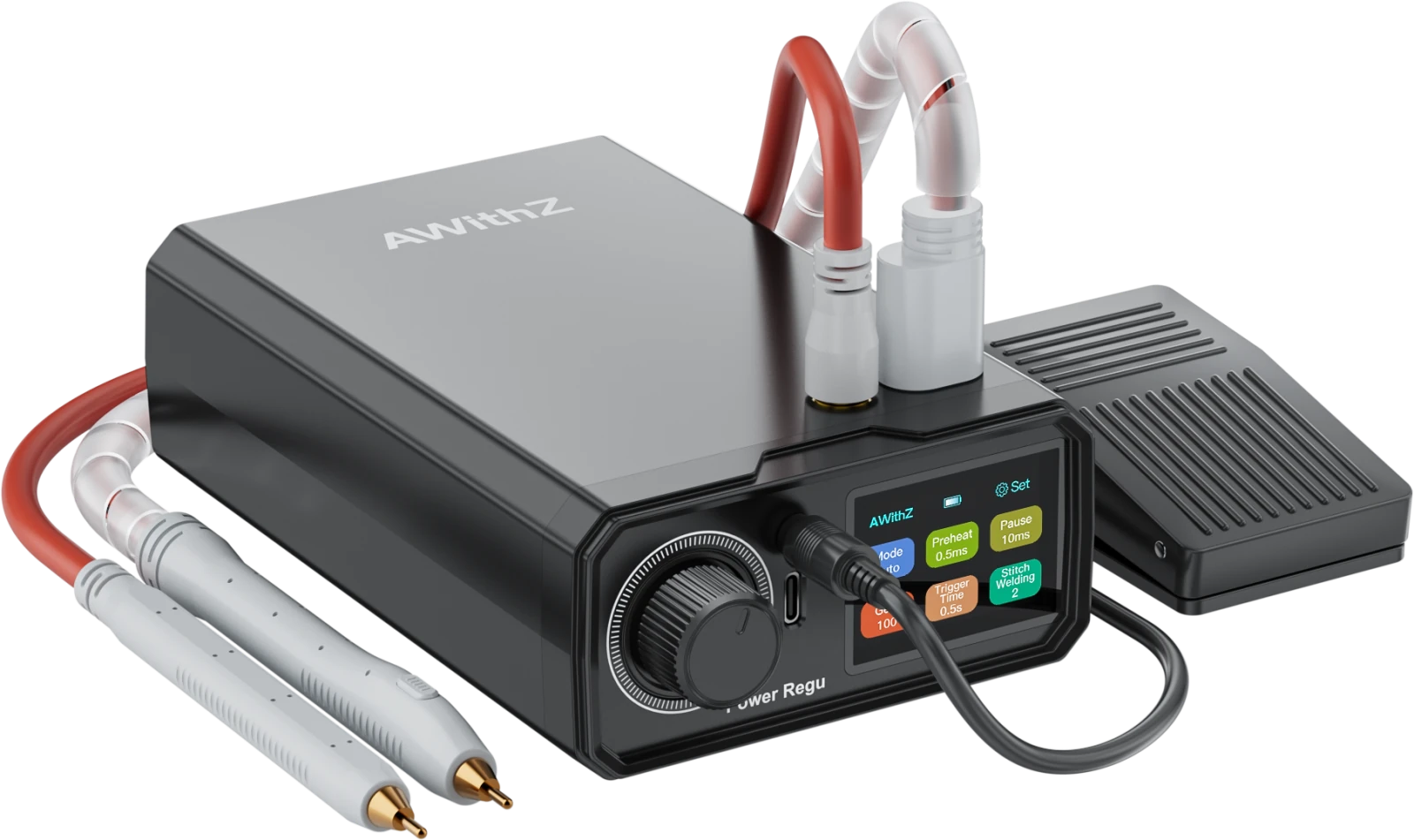

AWithZ UK3

Power-battery welding, honest thickness ratings

Twin A-grade cells (10000mAh), 1650A / 9000W, ~4000 welds per charge; knob + TFT screen, 99 levels, auto/pen/foot-switch; welds 0.3mm pure nickel and butt-welds 0.7mm stainless. ~300g, 2-year warranty.

Buy now · ¥279.9–299.9SpecsDownload manual

Before any lithium battery work, read the AWithZ Safety & Usage Guidelines ›

UK3

What people build with UK3

Real works from the WeldWorld creator community

No projects yet.

Highlights

Only brand-new Grade-A cellsNo high-drain, risky B/C-grade cells
1650A dual-pulse: solid 0.3 pure nickel, 0.7 butt weldTested on 18650: Ni-plated steel butt-weld 0.7mm / stack-weld 0.5mm / spot-weld 0.3mm, pure nickel 0.3mm, copper 0.15mm (0.2mm with flux)
10000mAh · ~4000 welds · 10k+ cyclesDual-engine coupling doubles efficiency — twice the endurance of a single cell
Knob + HD TFT screenMode / level / trigger / repeat on one knob, 99 levels
Three welding modesAT auto mode (smart sensing, batch) · MT hand-pen mode (precise triggering, fine work) · MT foot-switch mode (hands + feet)
Smart hand-control penA manual button controls trigger timing anytime
UK3

Only brand-new Grade-A cells

No high-drain, risky B/C-grade cells — Grade-A cells are safe, durable and hold their charge.

UK3

1650A dual-pulse: solid 0.3 pure nickel, 0.7 butt weld

Tested on 18650: Ni-plated steel butt-weld 0.7mm / stack-weld 0.5mm / spot-weld 0.3mm, pure nickel 0.3mm, copper 0.15mm (0.2mm with flux).

UK3

10000mAh · ~4000 welds · 10k+ cycles

Dual-engine coupling doubles efficiency — twice the endurance of a single-cell design.

UK3

Knob + HD TFT screen

Mode / level / trigger / repeat on a single knob, across 99 levels.

Weldable thickness (mm, MAX)

Nickel-plated steel strip
0.3
Pure nickel strip
0.3
Copper strip
0.15
Stainless strip
0.3
Iron sheet
0.3

Lab maximums; results vary by material and environment.See all nine spec groups ›

Use cases

Cylindrical cell pack assemblyCoin-cell weldingPhone & laptop cell replacementHardware & metal joiningPower-tool battery repairRC / FPV battery buildsE-bike & power battery repair1865021700Coin cellsphone cellsPrismatic cells
